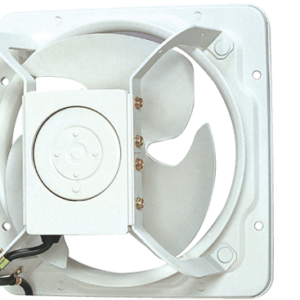

VENTILATING FAN INDUSTRIAL 25GSC – KDK (JAPAN)
PRODUCT DETAILS
| Model | 25GSC |
| Blade size | 10 inch (250 mm) |
| Voltage | Single phase |
| Frequency | 50 Hz |
| Consumption | 44 W |
| Air volume | 1120 cmh (659 cfm) |
| Max. speed | 1380 rpm (min-1) |
| Dimensions (W x H x D) | 327 x 327 x 171 mm |
| Weight | 4.40 kg |
- High pressure series
- Reversible, high performance motor
- Distinctive wave shape blade delivers a smooth and turbulence-free Airflow
- Bell mouth construction incorporated with new blade enables operation with high static pressure
- Durable powder coating ensure high rust-resistant capability
- Unique drain mechanism avoids the ingress of water and dust into the motor for excellent durability
- High performance totally enclosed motor with thermal cut-off
- Able to be used over an ambient temperature range of from -10℃ to +50℃
- Possible to install horizontally or vertically
